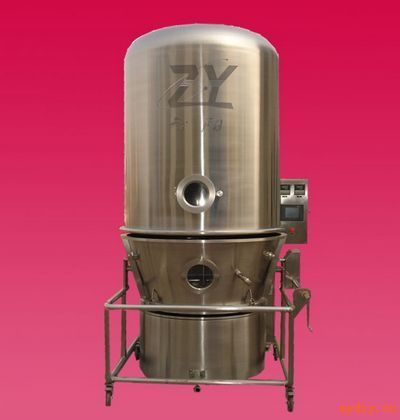

GFG 高效沸腾干燥机

GFG HIGH EFFICIENT FLUID-BED DRYER

★应用概述 :General of applications

※ 本机用于制药、化工、饲料、食品等领域湿颗粒或粉状物料干燥。
※ The machine is suitable for drying damp granule or powder material in many fields such as pharmaceutical industry, chemical industry, feedstuff industry, fooedstuff industry, etc.

★设备特点：Features of equipment

※ 床内设置搅拌，避免了潮湿物料的团聚及干燥过程中形成沟流。
※ 顶置布袋过滤器为抗静电特种纤维，操作安全。
※ 翻倾卸料，方便迅速彻底。
※ 密封负压操作，按 GMP 规范设计。
※ 本机亦可按要求进行自动进出料设计制作。
※ 干燥速度快，温度均匀，每批干燥时间均在 20- 30 分钟。

※ 流化床为圆形结构避免了死角。
※ This fluid-bed is round structure. So it avoid died corner.※ In the bed there is stirrer. It avoid agglomeration of damp material and forming channel flow during drying.
※ The bag filter at top is made from anti-static special fiber. The operation is safe.
※ Discharged by turning over. It is quick, and fully.
※ Operated at sealed negative pressure and designed by GMP
※ The machine can also be designed to feeding and discharge automatically in accordance with requirements.
※ Quick drying speed, uniform temperature. In general, the drying time each batch is about 20 ～ 30 minutes.

★技术参数:Technical Data

项目 Item		规格 Specification
投料 Feeding capacity		kg/ 批㎏ /batch	60	100	120	150	200	300	500	≥800
风机功率 Power of fan		kw	11	15	18.5	22	22	30	37	按用户要求设计 By URS
搅拌功率 Power of stirring		kw	0.55	1.1	1.1	1.1	1.1	1.1	1.5
搅拌转速 speed of stirring		rpm				11
蒸汽耗量 consumption of steam		kg/h	141	170	170	240	282	366	451
操作时间 working time		min				15-30
安装参考图 Installation size for reference	H1	mm	2676	2842	2862	2940	3014	3300	3650
	H2	mm	2366	2532	2552	2630	2704	2800	3150
	A	mm	2440	2540	2540	2740	2840	2940	3140
